Discover our products

Load cells for tension measurement on rolls

ATB-P / PE / PMZ

Flange shaped steel load cells, with internal housing for ball-bearing (from Ø32 up to Ø140 mm) and built in mechanical protection against overload . Available in several sizes for measuring forces from 125 N up to 10000 N.

ATB-PC

Flange shaped load cells, in steel or stainless steel, with internal housing for ball-bearing (from Ø52 up to Ø110 mm) and built in mechanical protection against overload. Available in several sizes for measuring forces from 200 N up to 10000 N.

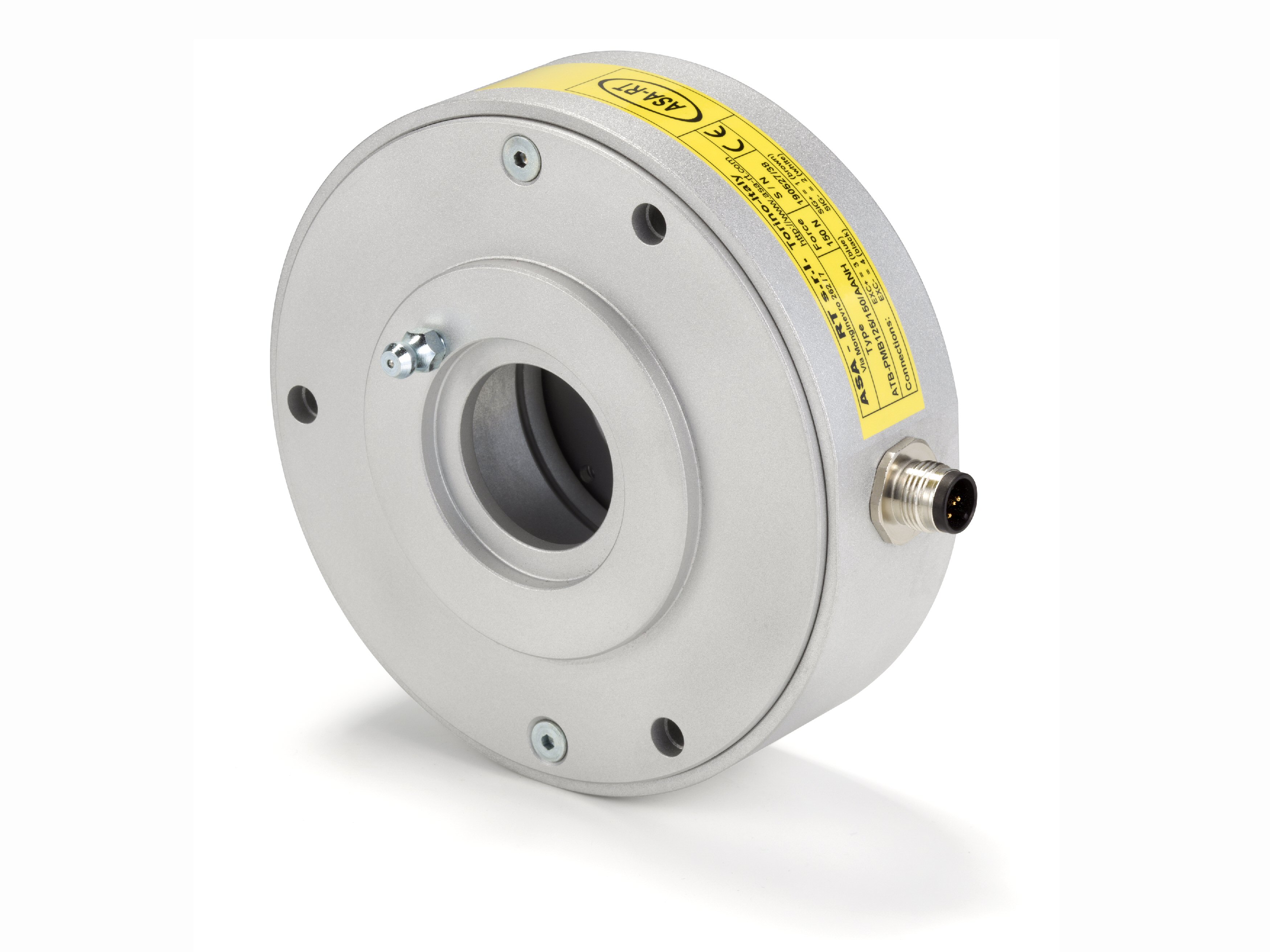

ATB-PMB

Flange shaped load cells, in aluminium, with internal housing for ball-bearing (from Ø40 up to Ø80 mm) and built in mechanical protection against overload. Available in several sizes for measuring forces from 150 N up to 2000 N.

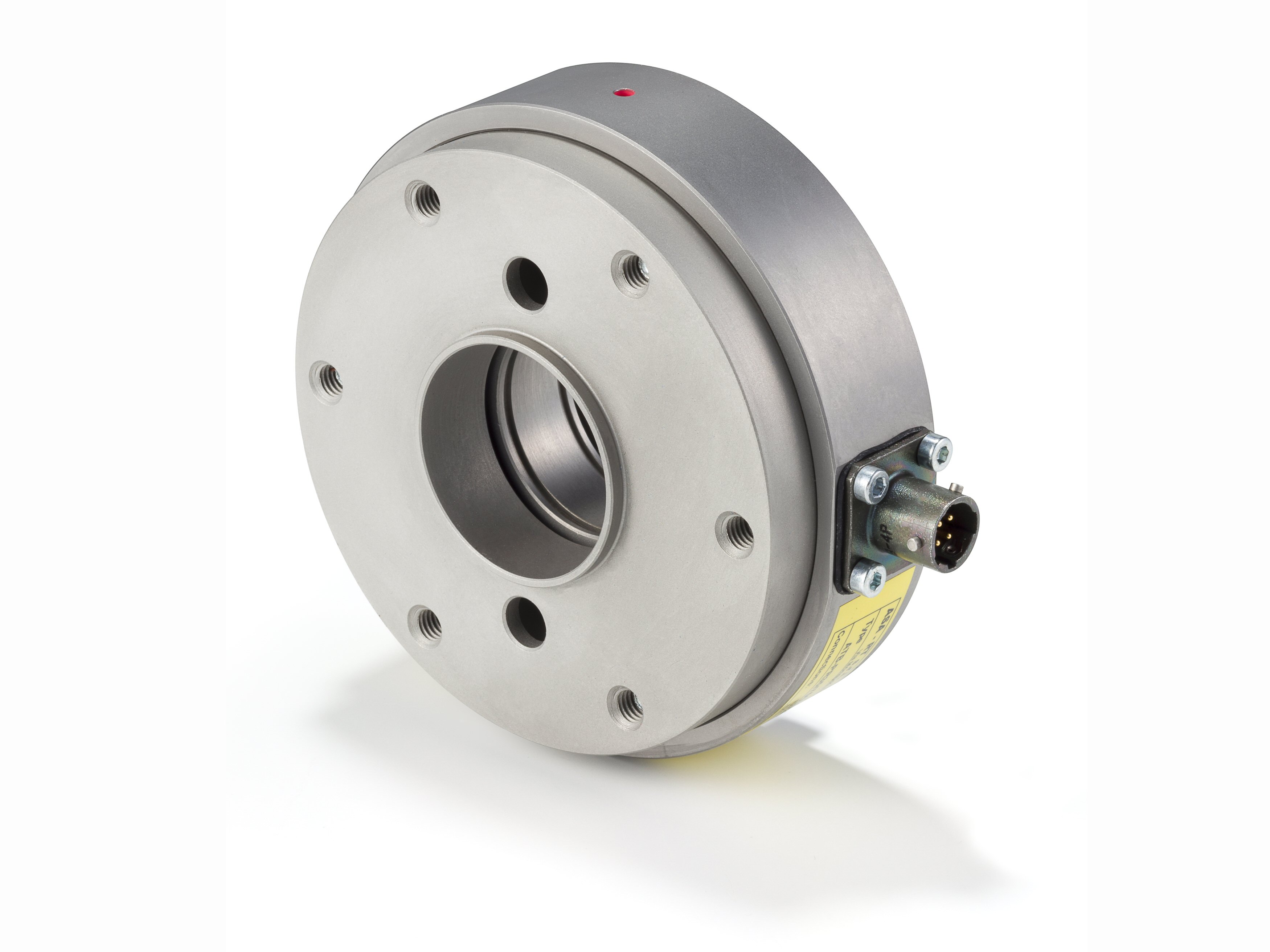

ATB-PRS

Flange shaped stainless steel load cells, with internal housing for ball-bearing (Ø35 or Ø42 mm) and built in mechanical protection against overload. Available in several sizes for measuring forces from 250 N up to 2000 N.

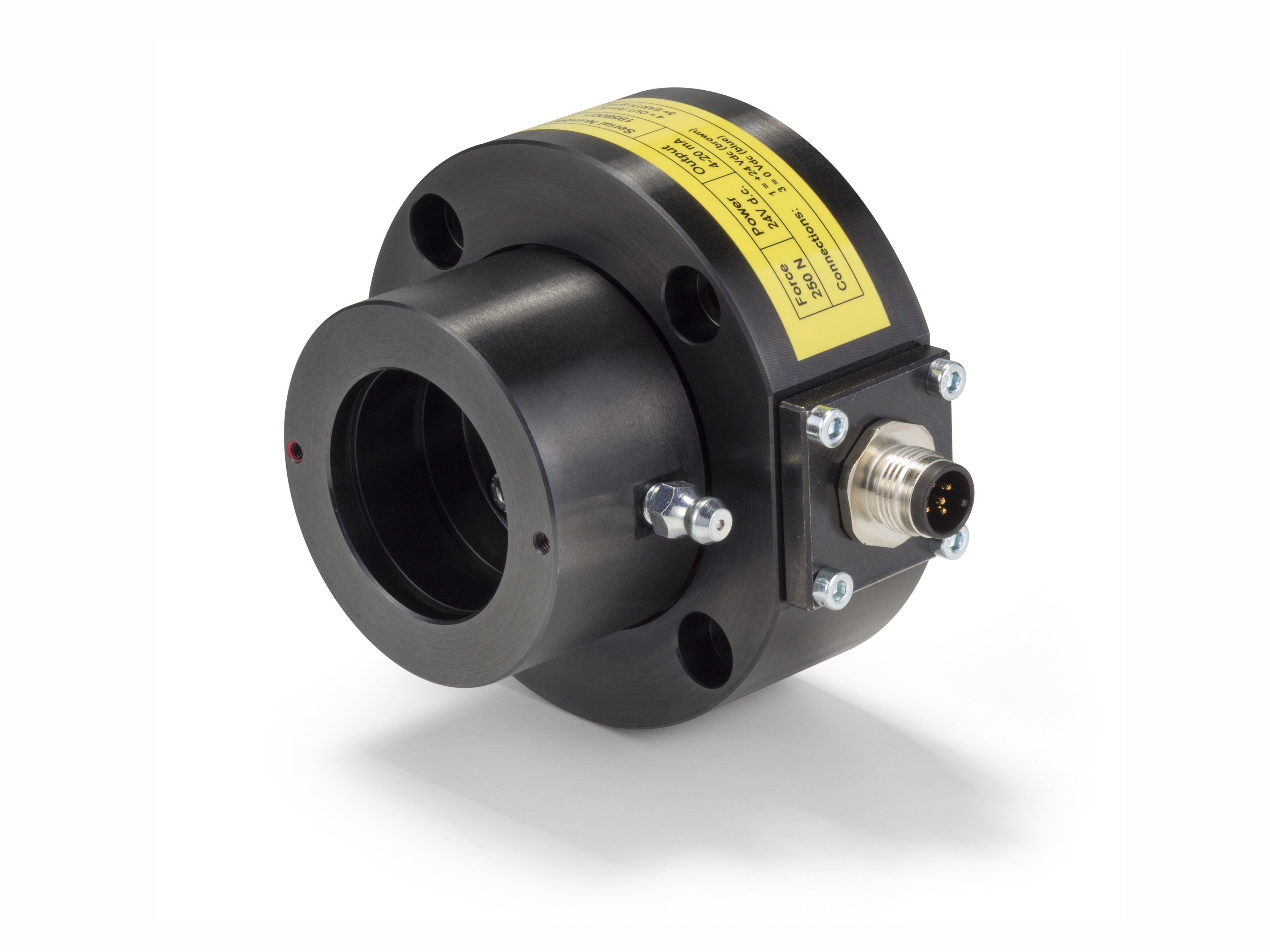

ATB-XR / XRE

Steel load cells, with internal housing for ball-bearing (from Ø35 up to Ø52 mm). Available in several sizes for measuring forces from 50 N up to 2000 N. the model with built in amplifier can be supplied with analog outputs or IO-Link output.

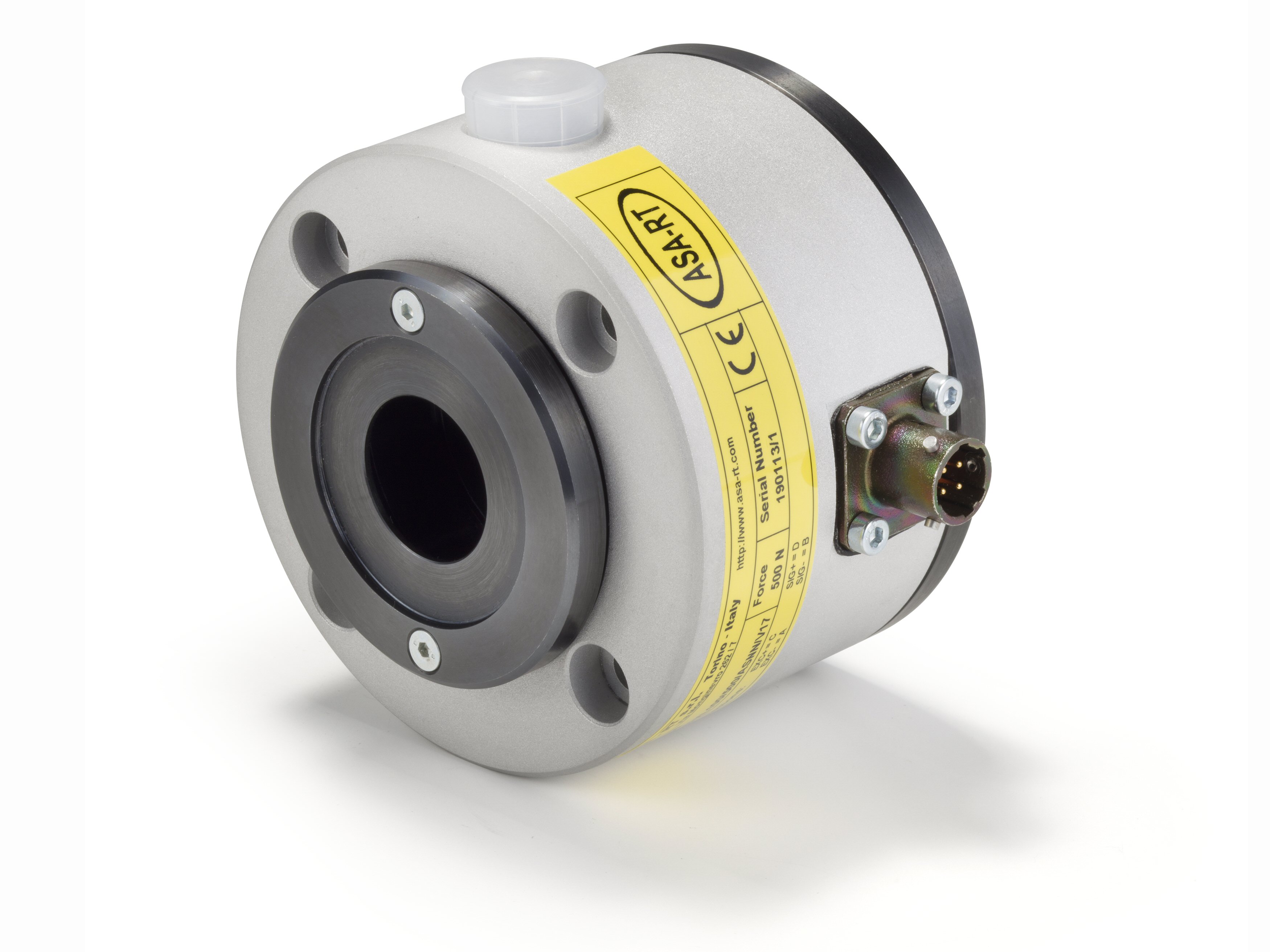

ATB-XL

Steel load cells, with internal housing for ball-bearing (from Ø35 up to Ø52 mm). Available in several sizes for measuring forces from 150 N up to 2500 N.

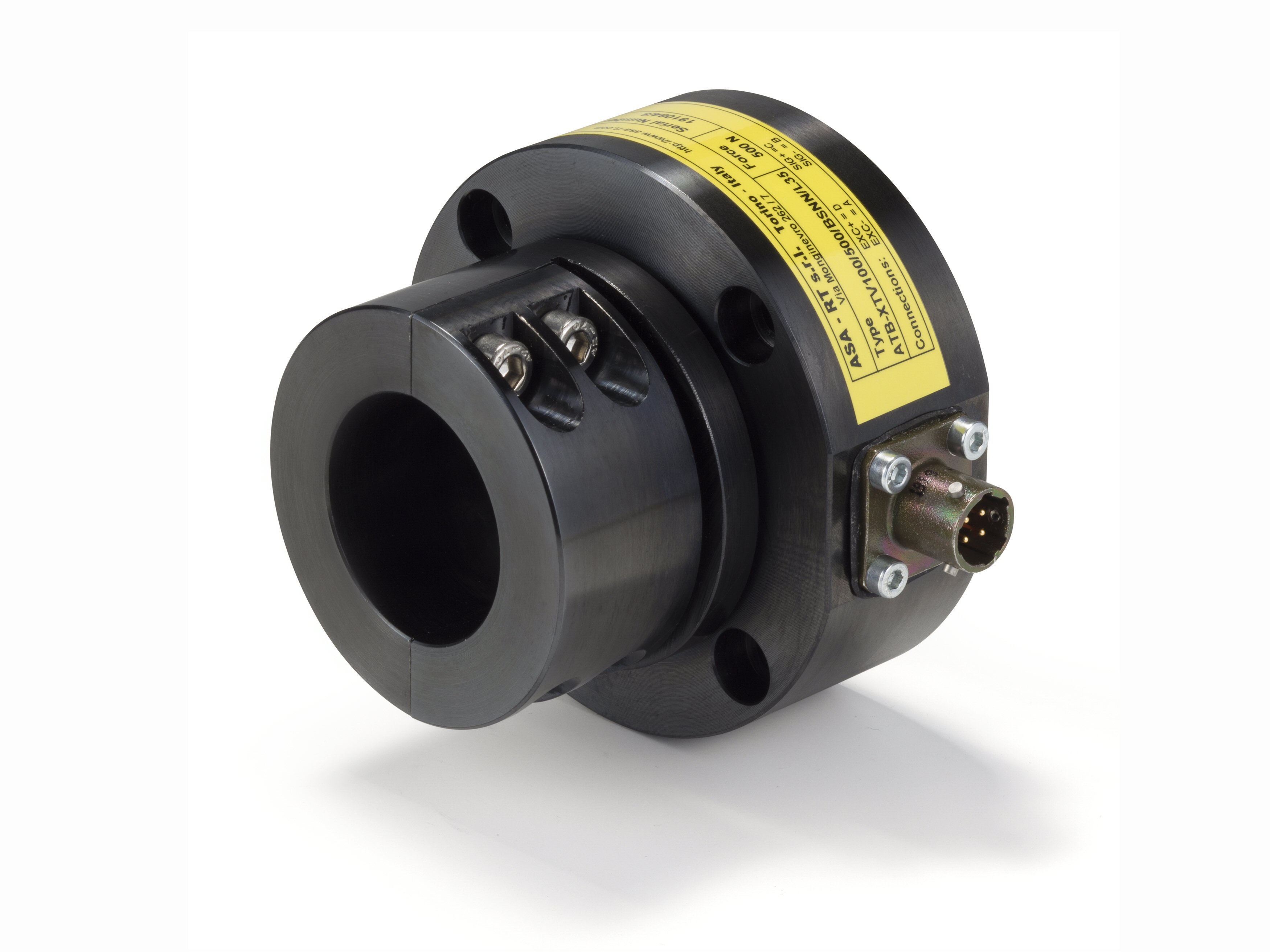

ATB-XTV / XTJ

Steel load cells with clamp adapter for dead shaft rolls; also available with spherical joint for uninterrupted shafts; available in several sizes for measuring forces from 50 N up to 2500 N.

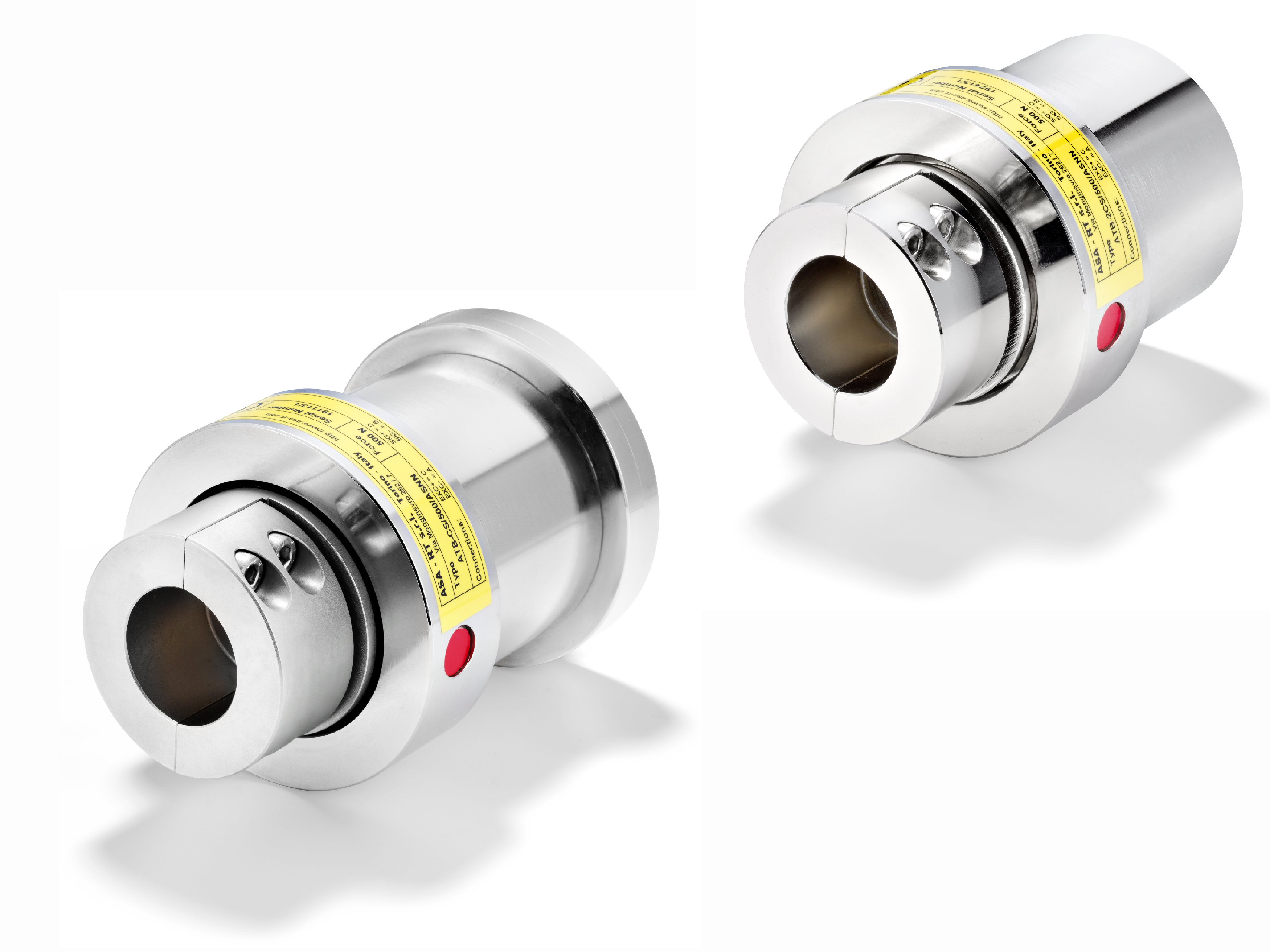

ATB-CS / 2CS

Steel load cells with clamp adapter for dead shaft rolls; also available with spherical joint for uninterrupted shafts; available in several sizes for measuring forces from 50 N up to 2500 N.

ATB-DW

Steel or stainless steel load cells with shaft for direct support of ball-bearings; Available in several sizes for measuring forces from 100 N up to 3000 N.

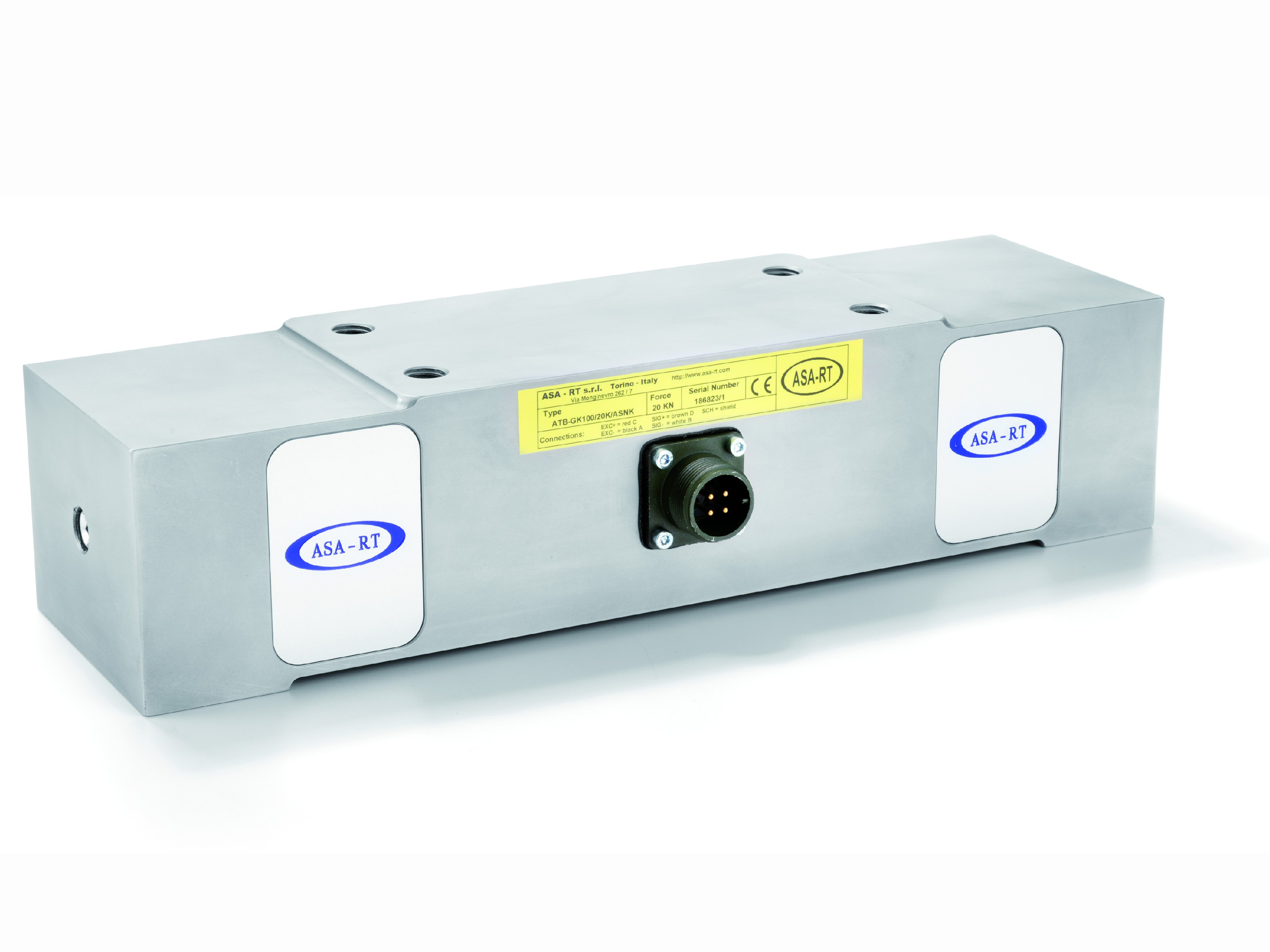

ATB-GK

Under pillow block load cell for measuring vertical forces; available in several sizes for measuring forces from 5 KN up to 500 KN.

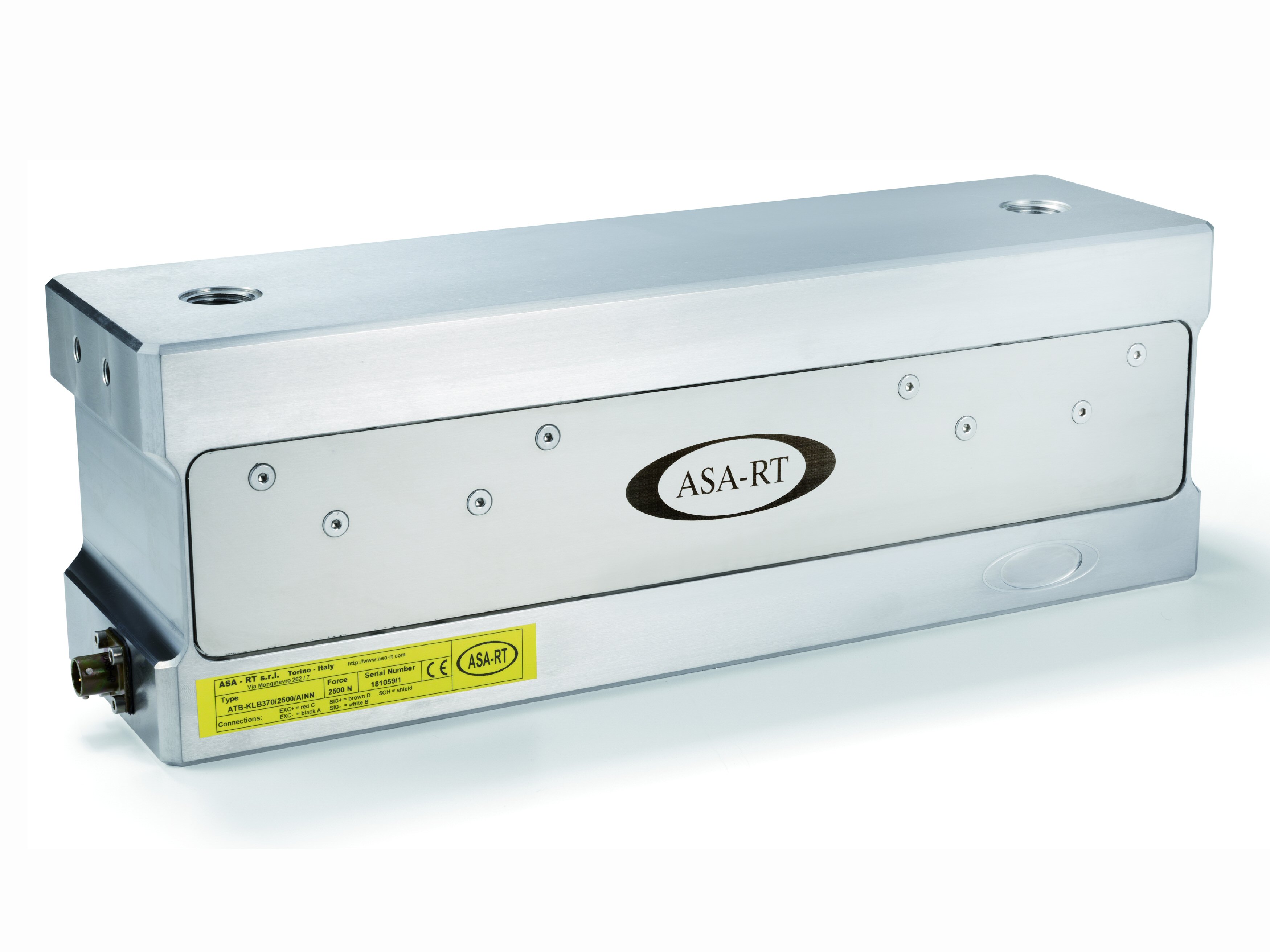

ATB-KLB

Under pillow block load cell for measuring horizontal forces; available in several sizes for measuring forces from 500 N up to 20 KN; internal structure with high rigidity.

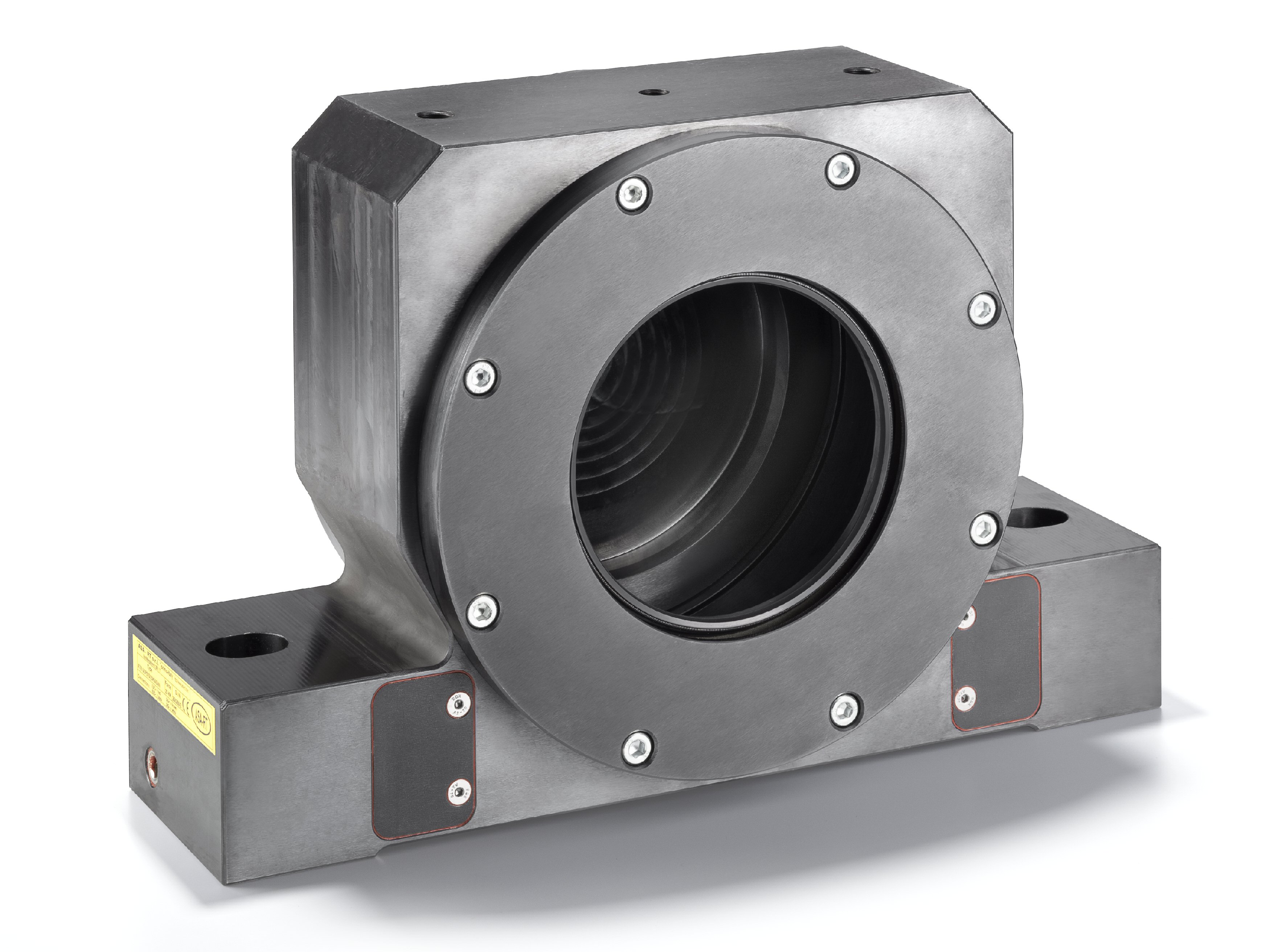

ATB-SOP

Load cells to be used in substitution of an housing for big ball-bearings, able to measure vertical forces. Available in several sizes, according to the housing for ball-bearing to substitute, and to the forces to be measured.
